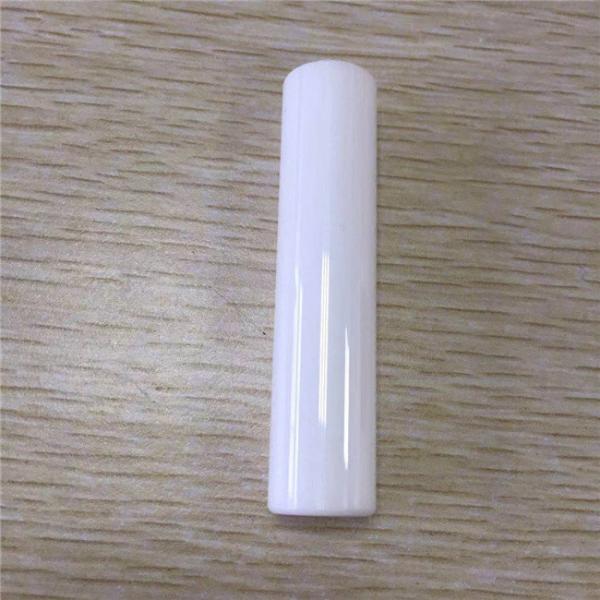

6.0g/cm3 density yttria zirconia machinable ceramic rods
Description:
Zirconia Ceramic offers high strength, wear resistance, and
flexibility far beyond those of most other technical ceramics.
Zirconia is a very strong technical ceramic with excellent
properties in hardness, fracture toughness, and corrosion
resistance; all without the most common property of ceramics – high
brittleness. Its unique resistance to crack propagation and high
thermal expansion make it an excellent material for joining
ceramics with metals like steel.
Our industrial ceramic parts include, tube, rod, plate, disc,
wafer, ring, seal, bearing, valves, pump plunger, beam, roller,
shaft, screw, washer, sleeve, hunger, spacer, holder, carrier,
insulator, fixture, clamp, chuck, nozzle, guide, frame, lining, and
grinding media, milling ball or beads.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical |
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia |
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
|
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
|
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
|
Breakdown Voltage
Strength kv/mm | 15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
|
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
|
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
Zirconia ceramic has a series of good properties,such as high
strength,good fracture toughness,high density,good abrasion
resistance,high hardness and so on.Zirconia ceramics can be used as
good abrasive and efficient grinding media.
Application:
1. Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning
and so on.
2. As ceramic parts of flexible pad and channel heaters at
operations of pre and postweld heat treatment; Welding process,
stress-relieving, pre-heating & post heating, other
resistance-heating environment.
3. halogen lamps, high and low pressure uv lamps, mercury lamps, uv
lamp holders and heating tubes.
4. high-power electrical applicance and all kinds of insulation
device.
